Product Description

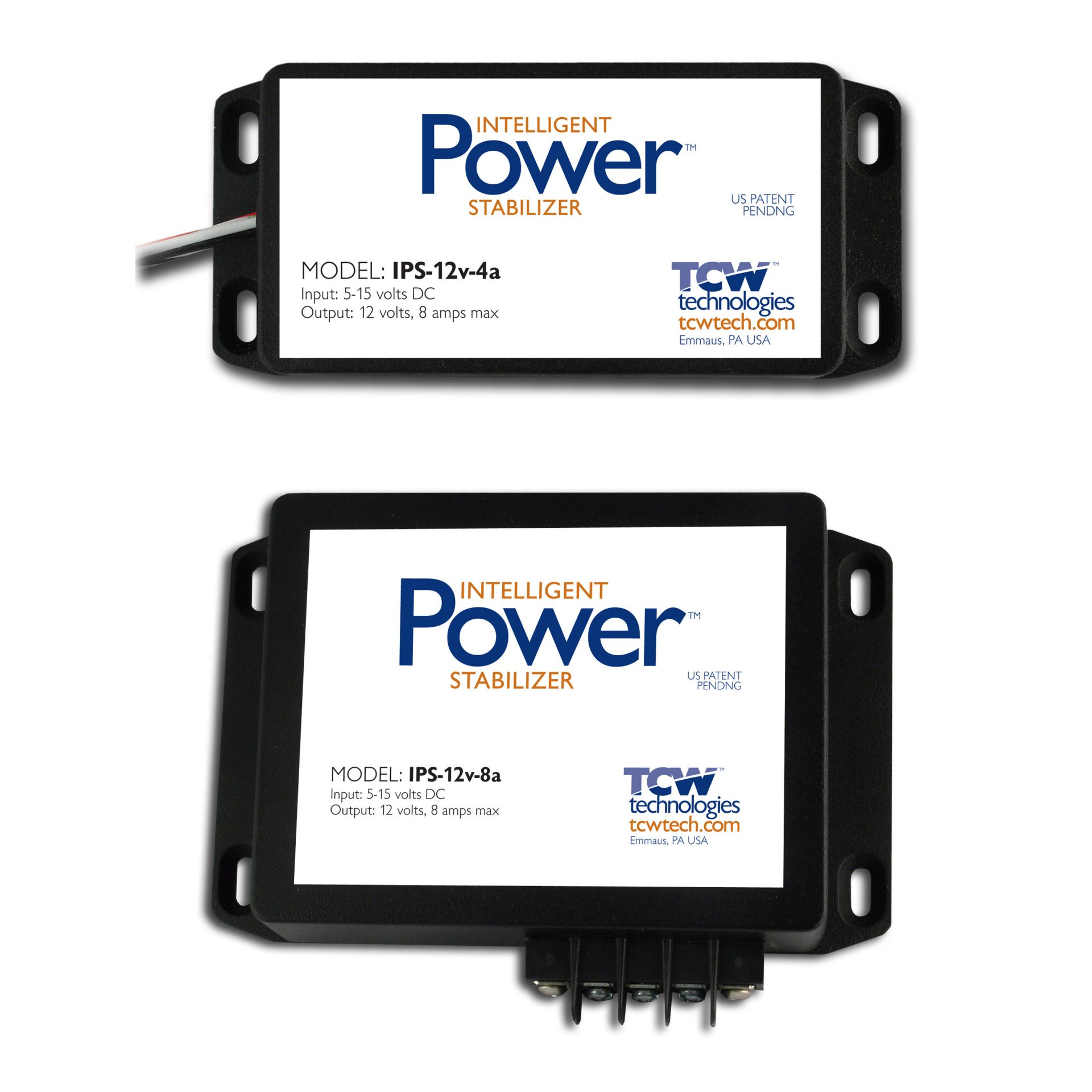

The patented technology in the Intelligent Power Stabilizer system ensures the connected electronic equipment is provided with a stabilized source of power even when the aircraft battery voltage drops significantly. This is particularly important during engine starting or alternator out conditions. IPS provides aircraft bus voltage surge and sag protection for the connected electrical equipment by actively clamping the regulated output voltage.
IPS system will operate over an input voltage range from 5 volts to 15 volts and provides a regulated output voltage of greater than 11.25 volts.
The IPS-12V-4A model features a panel mounted low voltage warning light which may be used to provide a pilot warning when the aircraft bus voltage falls below 12 volts.
Intelligent Power Stabilizer is protected under US Patent 7,868,478
Intelligent Power Stabilizer Specifications
Non-Certified
|
IPS-12V-4AMP
|
IPS-12V-8AMP
|
IPS-24V-5AMP
|
Input Voltage:
|
5 – 15 volts DC
|
5 – 15 volts DC
|
10 – 30 volts DC
|
Output Voltage:
|
> 11.25 volts DC
|
> 11.25 volts DC
|
> 24.0 volts DC
|
Output Current:
|
4 amp continuous
|
8 amps continuous
|
5 amps continuous, 10 amps peak
|
Converter:
|
True DC:DC converter with output over voltage, over current and over temperature protection
|
True DC:DC converter with output over voltage, over current and over temperature protection
|
True DC:DC converter with over voltage, over current and over temperature protection
|
Panel Warning Light:
|
LV warning light included
|
N/A
|
N/A
|
Surge Protection:
|
16 volt active clamp, 1500 w 10/1000uS waveform
|
16 volt active clamp, 1500 w 10/1000uS waveform
|
32 volt active clamp, 1500 w 10/1000uS waveform
|
Wiring:
|
4ft leads, Mil-spec wire
|
Insulated barrier strip, #6 screws
|
Insulated barrier strip, #6 screws
|
Enclosure:
|
4.39” x 2.34” x 1.06”
|
4.6” x 3.7” x 1.18”
|
Cast aluminum 4.6” x 3.7” x 1.18”
|
Weight:
|
8 oz.
|
14 oz.
|
14 oz.
|
Temperature Range:
|
-25° C to 60° C
|
-25° C to 60° C
|
-25° C to 55° C
|
For Experimental Aircraft Only, not TSO’d
